TECHNICAL SPECIFICATIONS
| Parameter | Specification Details |
|---|---|

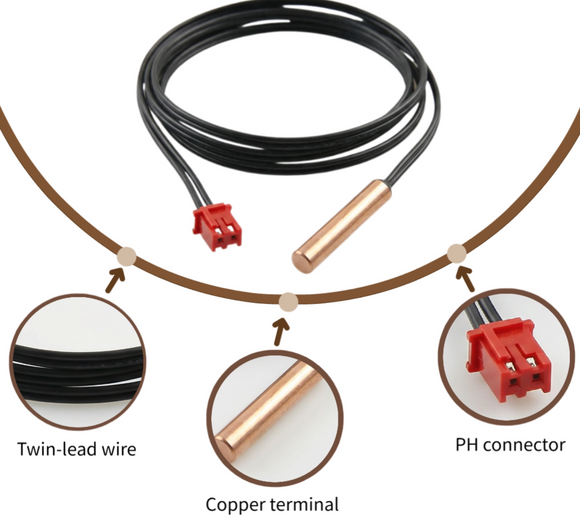

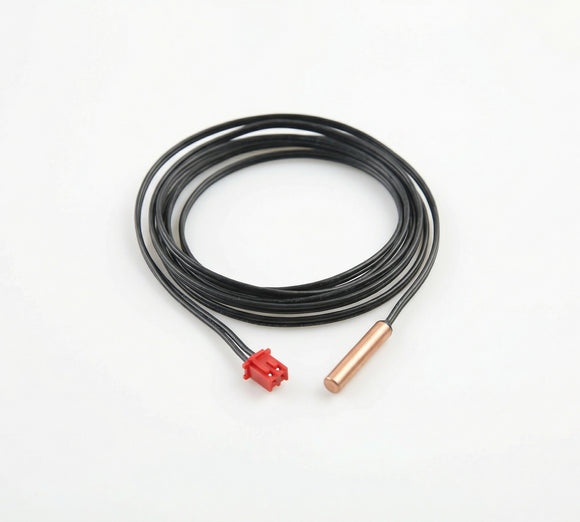

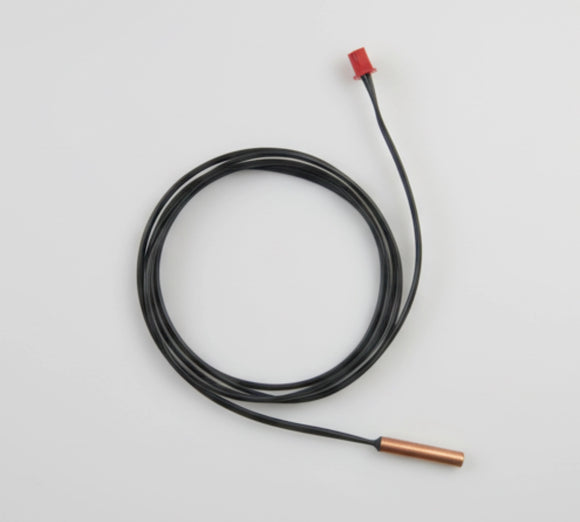

| Product Type | Copper Cylinder NTC Temperature Sensor |
| Probe Material | Pure Copper (High Thermal Conductivity) |
| Connector Type | Red Housing Connector (Color-Coded XH/PH) |
| Operating Temp | -40°C ~ +125°C |
| Resistance (R25) | 5KΩ, 10KΩ, 15KΩ, 20KΩ, 50KΩ (HVAC Standard) |
| Beta Value (B25/50) | 3470K / 3950K / 4100K |
| Response Time | Fast Response (< 5s in liquid) |
| Application | Air Conditioners (Coil/Pipe Temp), Heat Pumps |
SUPERIOR THERMAL CONDUCTIVITY
Engineered for speed. The probe housing is crafted from high-purity copper, which offers significantly higher thermal conductivity than stainless steel. This allows the sensor to detect rapid temperature changes in refrigerant lines instantly, optimizing the efficiency of air conditioning cycles.
HVAC INDUSTRY STANDARD
Designed specifically for the heating, ventilation, and air conditioning industry. This copper sensor is the perfect replacement for evaporator and condenser coil sensors found in major AC brands (like Daikin, Mitsubishi, Gree, etc.).
COLOR-CODED IDENTIFICATION
Simplifying maintenance. The sensor comes pre-terminated with a distinct red housing connector. This industry-standard color coding helps technicians quickly identify the specific function of the sensor (e.g., pipe temperature vs. ambient air), preventing installation errors during repairs.
ANTI-OXIDATION PROTECTION
Built to last in humid environments. While copper is highly conductive, our probes are treated to resist oxidation and corrosion caused by condensation on AC coils, ensuring consistent performance and accurate readings over the lifespan of the equipment.
