TECHNICAL SPECIFICATIONS
| Parameter | Specification Details |
|---|---|

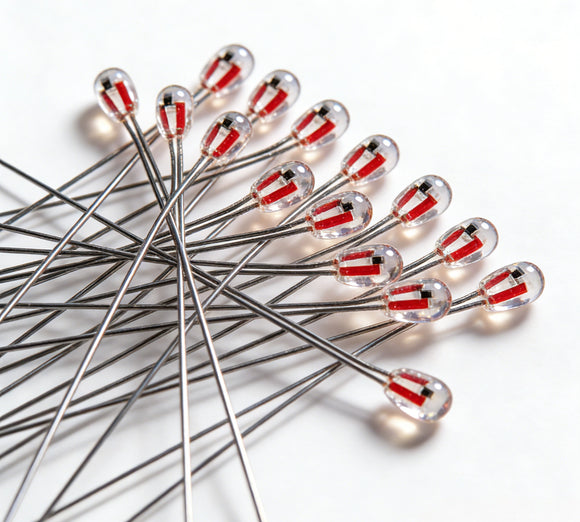

| Product Type | Single-Ended Glass-Sealed NTC Thermistor |
| Encapsulation | Hermetic Glass Bead (Moisture Proof) |
| Operating Temp | -55°C ~ +250°C (High Heat Resistance) |
| Resistance (R25) | 10KΩ, 50KΩ, 100KΩ (Customizable) |
| Beta Value (B25/50) | 3435K / 3950K / 3977K |
| Tolerance | ±1%, ±2%, ±3% |
| Lead Material | Dumet Wire (Copper-Clad Ni-Fe) |
| Head Size | Ø1.2mm ~ Ø2.3mm (Compact Bead) |
| Reliability | High Stability in Harsh Environments |
HERMETIC GLASS PROTECTION
Encapsulated in high-quality glass, this sensor offers a hermetic seal that completely isolates the sensing chip from moisture, oil, and dust. This makes it incredibly durable in harsh environments where traditional epoxy sensors would fail.
EXTREME HEAT RESISTANCE
Engineered for high-temperature applications. With an operating range of up to 250°C (and even 300°C for specific models), it is the ideal choice for ovens, 3D printers, automotive engines, and industrial heating systems.
SUPERIOR LONG-TERM STABILITY
The glass sealing process prevents aging and resistance drift caused by humidity absorption. This ensures that the sensor maintains its high precision over years of operation, making it perfect for critical metering equipment.

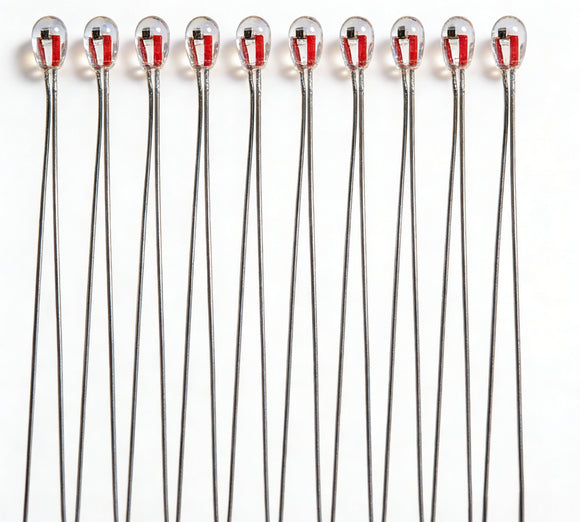

COMPACT RADIAL DESIGN
The single-ended radial lead design allows for easy installation in limited spaces. Despite its robust glass shell, the bead size remains small (typically Ø1.2mm - Ø2.0mm), ensuring fast thermal response times.
