TECHNICAL SPECIFICATIONS
| Parameter | Specification Details |
|---|---|

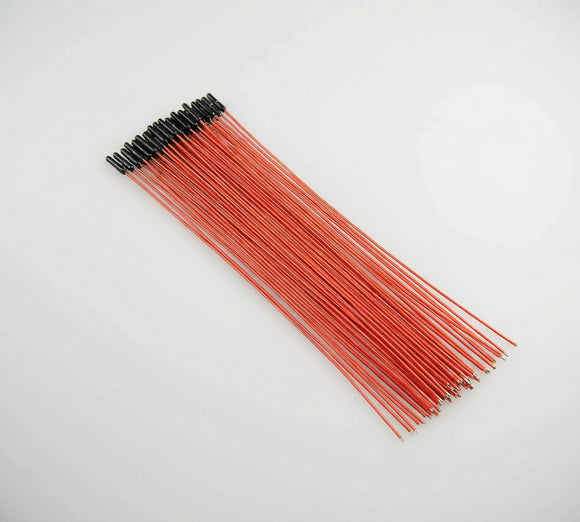

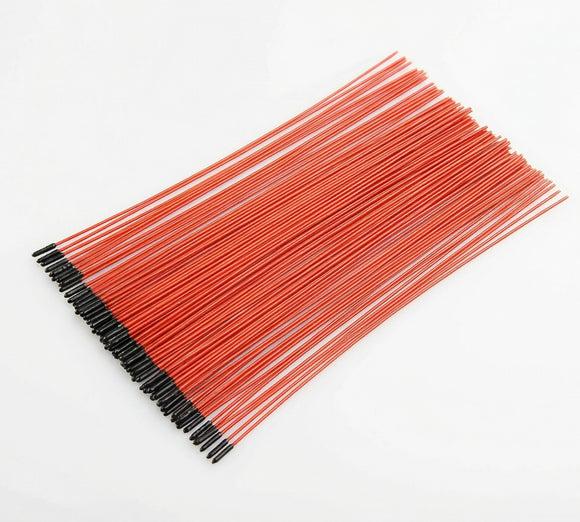

| Product Type | Enameled Wire NTC Thermistor (MF52E Series) |
| Wire Type | Enameled Copper Wire (Insulated) |
| Flexibility | Ultra-Flexible (Bends like Hair) |
| Head Size | Tiny Epoxy Bead (Ø1.2mm ~ Ø2.0mm) |

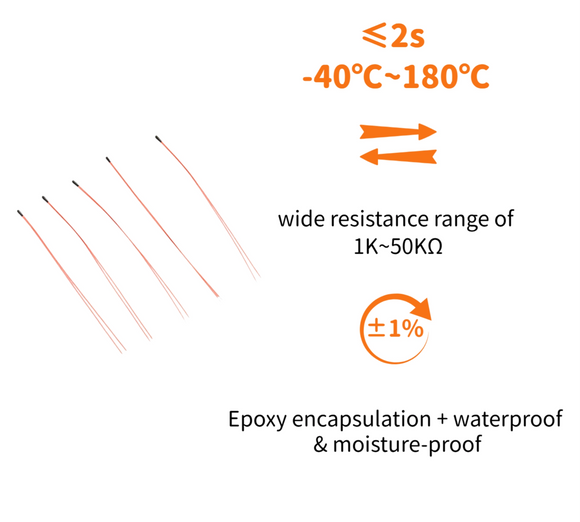

| Operating Temp | -40°C ~ +125°C |
| Resistance (R25) | 10KΩ, 100KΩ (Battery BMS Standard) |
| Beta Value (B25/50) | 3950K / 3435K |
| Insulation Coating | Polyurethane / Polyamide (180°C Rated) |
| Application | Battery Cells, Motor Windings, Transformers |
ULTRA-FLEXIBLE INTEGRATION
Designed for the most demanding geometries. With its ultra-thin enameled copper wire leads, this sensor offers exceptional flexibility, allowing it to be woven directly into motor windings or routed through the tight gaps between battery cells without adding bulk or stress.
BATTERY SAFETY CRITICAL
The first line of defense for Lithium-ion packs. This sensor is specifically engineered for Battery Management Systems (BMS) in electric vehicles, power tools, and e-bikes. It provides fast, accurate temperature data to prevent overheating and thermal runaway.
SUPERIOR INSULATION
Despite its bare-wire appearance, the leads are coated with a high-grade enamel insulation (Polyurethane or Polyamide). This prevents electrical short circuits even when the wires are pressed tightly against conductive metal surfaces inside transformers or stators.
MINIMAL THERMAL MASS
Small size means fast speed. The tiny epoxy bead and thin wire construction result in negligible thermal mass, ensuring the sensor does not affect the thermal profile of the device it measures while delivering instantaneous response times.
